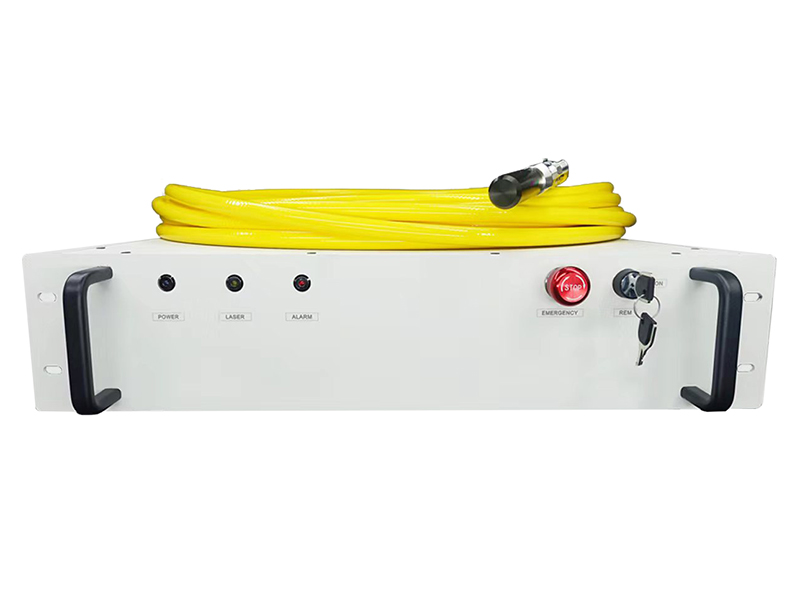

YFL-1500SM Ytterbium Single-mode CW Fiber Laser

YFL-1500SM Ytterbium Single-mode CW Fiber Laser

Inquiry

Techwin YFL-1500SM Ytterbium Single-mode CW Fiber Laser adopts latest industry technology and the optimization design, resulting in excellent electro-optical conversion efficiency, long lifetime, safety, and dependability. The output beam of this fiber laser is of high quality and it has strong capability on resisting high-reflective. Our fiber laser is widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.

Techwin Fiber Laser, which is based on Internet technology, established a scientific after-sales service system. Each laser device has a unique identity code (all kinds of original technology and material information of the machine are stored inside). Remote online real-time monitoring is support and we can provide users with equipment fault early warning and efficient technical support as well as good after-sales service.

Techwin Fiber Laser can fulfill the demands of client diversification and tailored customization with products of high quality, high reliability, and outstanding cost performance. We are also the best solution for system integrators and equipment manufacturers, as it comes with excellent after-sales service.

Techwin Fiber Laser with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. We are the ideal choice for system integrators and equipment manufacturers.

Features

High wall plug efficiency, greatly reduce power consumption
Strong capability on resisting high-reflective, suitable for different materials processing
Remote real-time monitoring
High lifetime, high safety and reliability
Can achieve personalized customization
Excellent after-sales service system
Excellent cost performance

Applications

Laser cutting
Laser welding
Laser cladding
Laser brazing
Laser surface heat treatment

Parameter

Performance				Min.		Typ.	Max.	Additional
Optic Feature	Central wavelength	(nm)	1070		1080		1090
	Spectral bandwidth	(nm)			3		5		-3dB
	Output optical power	(W)			1500
	Power Adjustable Range	(%)	10				100
	Output power stability	(%)			1		1.5		100% continuous ＞1h
					2		3		100% continuous ＞24h
	Beam quality	(M2)					1.3		QBH-20/400
							2.8		QBH-50/360
	Modulation frequency.	(KHz)					20		100% output
	Glow power	(mW)	0.3				1.0
Output Feature	Output connector				QBH				Customize
	Output fiber core-diameter	(μm)			20		100
	Output fiber length	(m)			15				Customize
	Output fiber bending radius	(mm)	200
	Working mode		Continuous modulation						CW/Modulate
	Polarization state		Random						Random
Electrical cooling Feature	Telecommunication port		RS232 / AD / Super terminal
	Remote telecommunication		APP						Customize
	Power supply	(V)	340		380		420		Three phase five wire
	Power consumption	(KW)					4.5
	Cooling method		Water-cooling						Circumscribed
	Coolant temp.	(°C)	21				25
	Coolant flow	(L/min)			20
General Feature	Working environment temp.	(°C)	10				40
	Working environment humidity	(%)	10				85
	Storage temp.	(°C)	-10				60
	Weight	(kg)			40
	Structure		Machine cabinet
	Size (W) × (L) × (H)	(mm)	482.6 ×451×104						With hook

Techwin is known as an expert company in developing and manufacturing of fiber lasers, fiber amplifiers and fiber sources. We also strive to provide our customers with custom fiber laser solutions suited for your applications. All of our high-power fiber lasers and amplifiers are manufactured following a rigorous quality management system. We are more than happy to share our laser technology with worldwide customers, and committed to earn the ongoing trust of our customers with our industrial fiber lasers coupled with expert support and service in various industrial segments.
