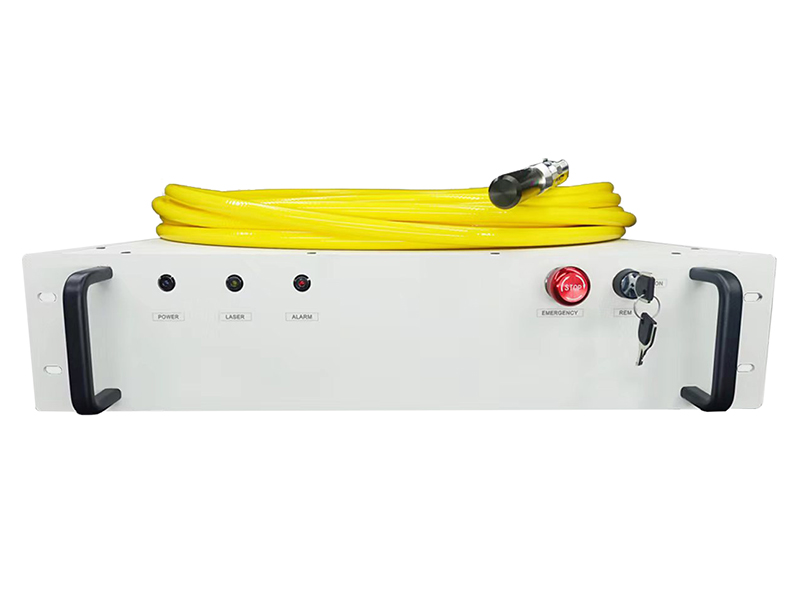

YFL-1000SM Ytterbium Single-mode CW Fiber Laser
Techwin YFL-1000SM Ytterbium Single-mode CW Fiber Laser adopts latest industry technology and the optimization design, resulting in excellent electro-optical conversion efficiency, long lifetime, safety, and dependability. The output beam of this fiber laser is of high quality and it has strong capability on resisting high-reflective. Our fiber laser is widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.
Techwin Fiber Laser, which is based on Internet technology, established a scientific after-sales service system. Each laser device has a unique identity code (all kinds of original technology and material information of the machine are stored inside). Remote online real-time monitoring is support and we can provide users with equipment fault early warning and efficient technical support as well as good after-sales service.
Techwin Fiber Laser can fulfill the demands of client diversification and tailored customization with products of high quality, high reliability, and outstanding cost performance. We are also the best solution for system integrators and equipment manufacturers, as it comes with excellent after-sales service.
Techwin Fiber Laser with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. We are the ideal choice for system integrators and equipment manufacturers.
- High wall plug efficiency, greatly reduce power consumption
- Strong capability on resisting high-reflective, suitable for different materials processing
- Remote real-time monitoring
- High lifetime, high safety and reliability
- Can achieve personalized customization
- Excellent after-sales service system
- Excellent cost performance
- Laser cutting
- Laser welding
- Laser cladding
- Laser brazing
- Laser surface heat treatment
| Performance | Min. | Typ. | Max. | Additional | |||
| Optic Feature | Central wavelength | (nm) | 1070 | 1080 | 1090 | ||
| Spectral bandwidth | (nm) | 3 | 5 | -3dB | |||
| Output optical power | (W) | 1000 | |||||
| Power Adjustable Range | (%) | 10 | 100 | ||||
| Output power stability | (%) | 1 | 1.5 | 100% continuous ＞1h | |||
| 2 | 3 | 100% continuous ＞24h | |||||
| Beam quality | (M2) | 1.3 | QBH-20/400 | ||||
| 2.8 | QBH-50/360 | ||||||
| Modulation frequency. | (KHz) | 20 | 100% output | ||||
| Input fiber | Diameter | (μm) | 100 | NA:0.22rad | |||
| Beam quality | (BPP) | 3 | 3.5 | QBH-100/360 | |||
| Output fiber 1 | Diameter | (μm) | 300 | NA:0.22rad | |||
| Beam quality | (BPP) | 9 | 10.5 | Beam Parameter Product*(86%) | |||
| Output fiber 2 | Diameter | (μm) | 600 | Na:0.22rad | |||
| Beam quality | (BPP) | 18 | 21 | Beam Parameter Product*(86%) | |||
| Glow power | (mW) | 0.3 | 1.0 | ||||
| Output Feature | Output connector | QBH | Customize | ||||
| Output fiber core-diameter | (μm) | 20 | 100 | ||||
| Output fiber length | (m) | 15 | Customize | ||||
| Output fiber bending radius | (mm) | 200 | |||||
| Working mode | Continuous modulation | CW/Modulate | |||||
| Polarization state | Random | Random | |||||
| Electrical Cooling Feature | Telecommunication port | RS232 / AD / Super terminal | |||||
| Remote telecommunication | APP | Customize | |||||
| Power supply | (V) | 220 | Two phase three wire | ||||
| Power consumption | (KW) | 3.0 | |||||
| Cooling method | Water-cooling | Circumscribed | |||||
| Coolant temp. | (°C) | 21 | 25 | ||||
| Coolant flow | (L/min) | 10 | |||||
| General Feature | Working environment temp. | (°C) | 10 | 40 | |||
| Working environment humidity | (%) | 10 | 85 | ||||
| Storage temp. | (°C) | -10 | 60 | ||||
| Weight | (kg) | 38 | |||||
| Structure | Machine cabinet | ||||||
| Size (W) × (L) × (H) | (mm) | 482.6 ×451×104 | With hook | ||||
