Distributed Feedback (DFB) Laser Source
Fiber laser sources & solutions, Fiber optic laser source
Distributed feedback laser source is a high stability laser source with narrow linewidth single longitudinal mode output, the full-width at half-maximum (FWHM) linewidth is less than 10MHz. This laser source can provide high output stability, the power fluctuations are less than 1‰. The wavelength ranges from 760nm to 2900nm, the typical wavelengths include 760nm, 795nm, 852nm, 1030nm, 1053nm, 1064nm, 1070nm, 1120nm, 1180nm, 1550nm, etc. These laser sources are widely used in various applications including gas sensing, atomic spectral analysis, fiber-optic communication, precision measurement, etc.

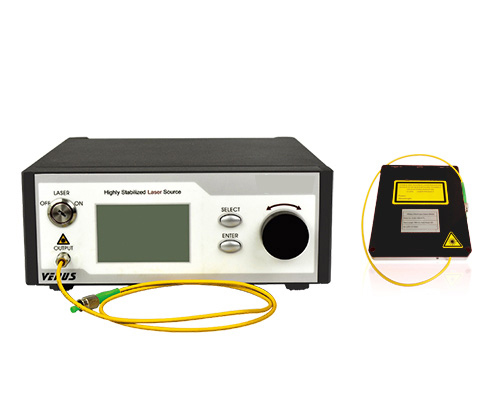

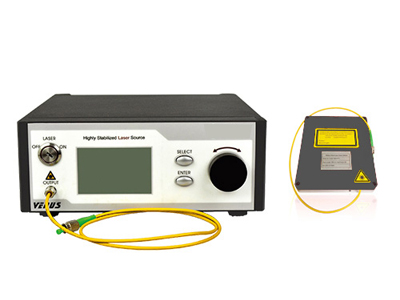

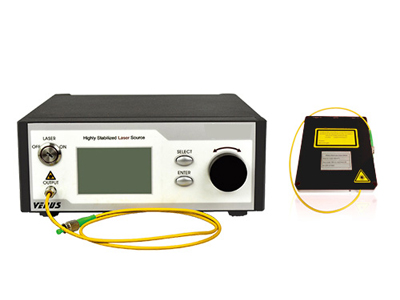

The CK series high stability DFB laser source uses high integrated configuration with high-definition LCD display, the output power is continuously tunable, and the current and voltage are displayed simultaneously. The DFB laser source is typically designed for general laboratory applications, scientific research tasks and production process control. Distributed feedback laser source can be provided in modular package according to your requirement, suited for system integration.
- Ultra-narrow linewidth: <10MHz
- Mode-hop free
- High stability and reliability
- Continuous tuning of output power
- LCD display
- DWDM communication system
- LAN/WAN communication system
- CATV system
- Testing and measuring
- Other scientific research tasks
- Mode-hop free
- High stability and reliability
- Continuous tuning of output power
- LCD display
- Seed source of fiber laser
- Measurement
- General laboratory applications
