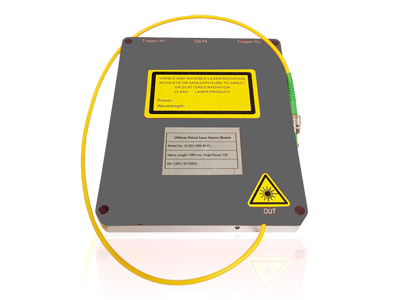

1.5µm Nanosecond Pulsed Fiber Laser
Communication & network devices, Fiber laser modules
The nanosecond pulsed fiber laser is commonly designed with master oscillator power amplifier (MOPA) architecture. The master oscillator generates initial pulses at ns level. After pulse shaping, the single-stage or multi-stage power amplifier boosts the pulse supplied by the oscillator to achieve high power output.
The nanosecond pulsed fiber laser is a high power pulsed laser source based on the wavelength which is safe to human eyes. It adopts high performance narrow linewidth distributed feedback (DFB) semiconductor laser as seed source, and built-in signal generator. The multi-stage optical amplification is optimized to achieve high peak power laser output with ns level pulse width. This nanosecond pulsed fiber laser is suitable for distributed temperature sensing (DTS) system, fiber optic sensing, LiDAR and other applications in various industries.
These lasers are powered via 5-12V DC power supply, designed with industrial standard DB25 communication port. Besides, the pulse output can also be achieved by external TTL signal, suited for system integration.
- Eye-safe operating wavelength: 1550nm
- Peak power output: 60W
- Repetition rate adjusting range: 1kHz-1MHz
- Pulse width: 1ns-250ns
- Near diffraction-limited beam quality
- DC power supply, modular package
- Distributed temperature sensing (DTS) system
- Fiber optic sensing
- LiDAR
- Remote sensing surveying
- Free space communication
- Other scientific research tasks
