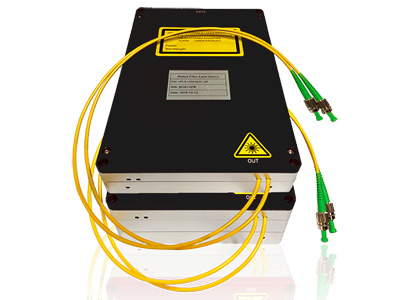

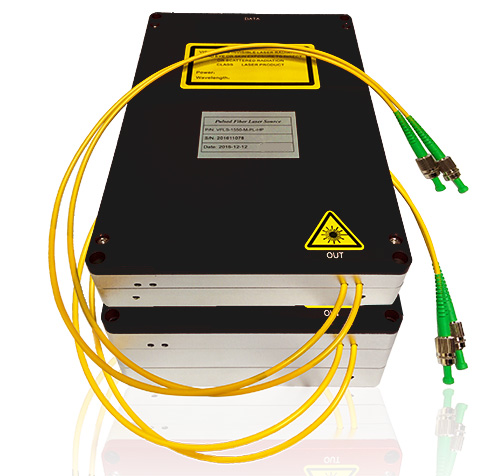

1550nm Long Pulsed Single Frequency Fiber Laser, CKLIS-LP (Short Distance, Polarization Maintaining)
1550nm Long Pulsed Single Frequency Fiber Laser, CKLIS-LP (Short Distance, Polarization Maintaining)
Laser modules and components, Fiber laser components
Inquiry
Features
Eye-safe operating wavelength: 1550nm
Single pulse energy: up to 10uJ
Repetition rate adjusting range: 5-100kHz
Pulse width: 100-3000ns
Single-mode output
High polarization extinction ratio (PER)
Specifications
Parameter
Unit
Specification
Min.
Typ.
Max.
Part No.
CKLIS-1550-M-SF-LP
Center Wavelength
nm
1545
1550
1565
Peak Power @200ns pulse width
W
-
-
50
Pulse Energy @200ns,20kHz
uJ
-
10
-
Pulse width
ns
100
200
1000
Repetition Rate
kHz
5
10
100
Beam Quality
M²
-
1.05
1.1
Output polarization
Linear polarization
PER
dB
20
>23
-
Output Isolation
50
-
-
Output Power Stability
%
-
±0.5
±1
Output Fiber Type
PM1550-XP
Output Fiber Length
m
0.5
-
1
Output Fiber Connector
FC/APC
Control interface
RS232
Power Supply
VDC
12~14
Operating Temperature
°C
-20
-
50
Storage Temperature
-40
-
70
Cooling Mode
Air-cooled
Dimensions
200x135x60
