MHz/GHz 2.0µm Narrow Linewidth CW Lasers
Fiber laser components, Fiber laser modules
Based on the design of master oscillator power amplifier (MOPA) architecture or direct resonant cavity architecture, the narrow linewidth CW lasers can realize high power output ranging from milliwatt (mW) to hundred watts. The adopted pumps commonly are the semiconductor lasers or fiber lasers in waveband 793nm and 1570nm. These CW lasers come with linear polarization or random polarization, suitable for applications including device testing, medical treatment, remote sensing, LiDAR, mid-IR pumping, etc. and the wavelengths are available in 1908nm, 1940nm, 1950nm, 2004nm, 2050nm, etc.
Our GHz 2.0µm high power CW thulium doped fiber lasers utilize microprocessor-based control system, which is featured by stable performance and maintenance-free operation. Through a clear interface LCD on the front panel, working state including output power and temperature can be displayed in real-time, warning messages will be sent in a timely manner.
- Excellent beam quality
- Stable power, reliable performance
- Linear polarization output is optional
- Narrow linewidth
- All-fiber structure design
- Medical treatment
- Mid-infrared pump source
- LiDAR
- Device testing
- Plastic material processing
- Nonlinear effect studies
- Other scientific research tasks
The CW thulium doped fiber laser delivers high output power up to 100W.
-
-

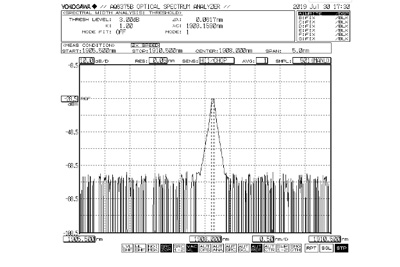

Measured spectrum (Output=10W)
The CW thulium doped fiber laser delivers high output power up to 40W.
-
-

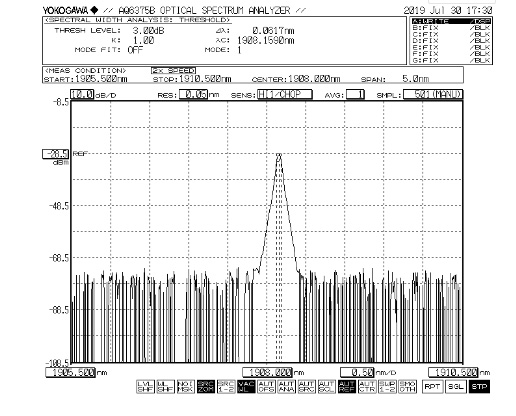

Measured spectrum (Output=10W)
